TRACKMASTER

€13,960.00 – €14,510.00 (Incl. VAT)

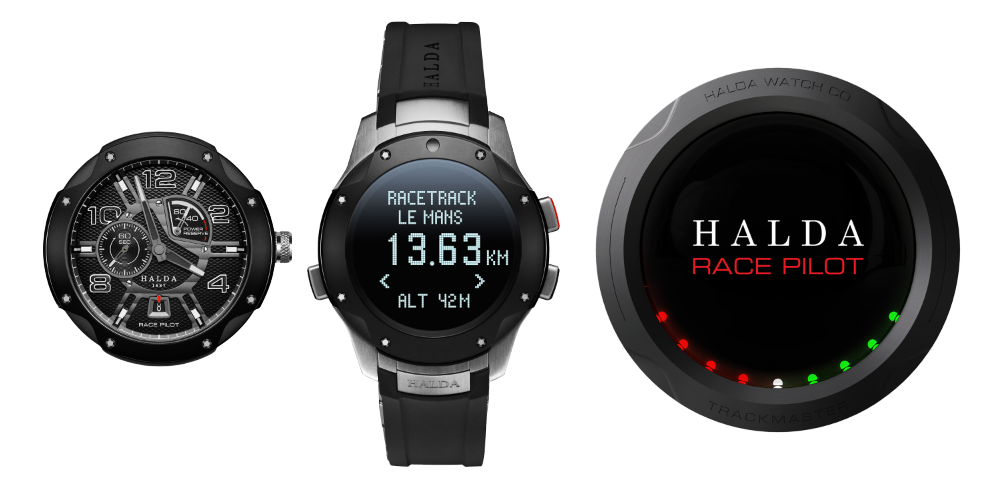

The mechanical module of the Trackmaster features a self-winding movement from Zenith. Diameter of the case is 45mm and it is available with a bezel in either stainless steel or titanium with a black DLC coating.

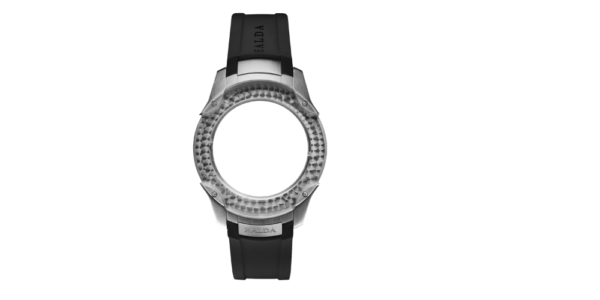

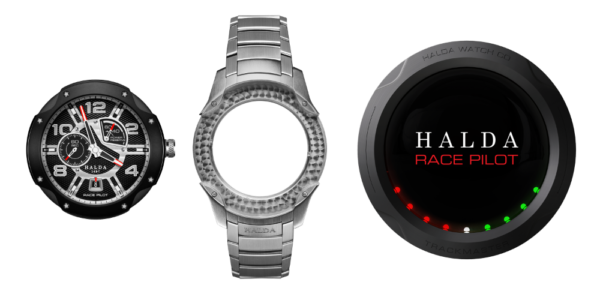

The case of the Race Module is made of titanium with a black DLC coating. It is delivered in a handmade wooden box, featuring a military grade GPS unit, the unique and award-winning Halda time platform and a bracelet in either stainless steel or natural rubber. The watch is built to withstand a pressure equivalent to 10 ATM (100 meters).

SKU: HRT 02 SS 01 SS Category:

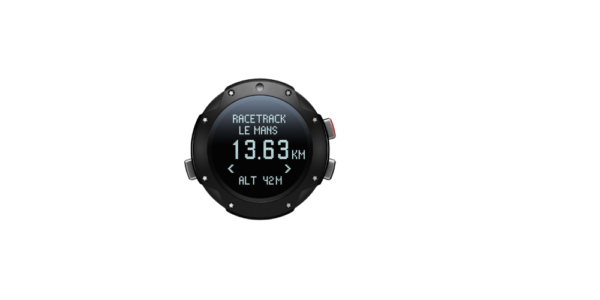

Digital module

CASE

Material

The case and bezel are made from Titanium and finished in black. Fastened with eight screws, the back of the case is stainless steel while push-buttons are brushed stainless steel with anodized inserts in aluminum.

Case Dimension

Diameter 45 mm, thickness 17,50 mm.
Band lug width 22 mm.

Case and Bezel

Titanium with black DLC treatment.

Case Back

Stainless Steel with a deep etching engraving on case back.

Buttons

Push-buttons in brushed stainless steel with anodized inserts in aluminum.

Crystal

Domed Sapphire Crystal, anti reflex treated on outside.

Water Resistance

Water resistant according to ISO 22810 (NIHS 92-20).
Pressure resistant to 10 atm.

TECHNOLOGY

General

The Caliber HR 2012-1 is a highly efficient electronic movement by Halda incorporating an automatic light sensor, a power save mode and a battery reserve indicator. This runs the software developed by Halda together with racing professionals – Race Pilot.

Electronic Movement Calibre

HR 2012-1.

Software

Software RP-A, RACE PILOT Version A.

Processor

Low power consumption microprocessor.

Push Buttons

3 push buttons with an easy to use interface.

Accelerometer

Three-axis accelerometer measuring G-Force.

Battery

Minimum lifetime 2 years.

Display

Custom designed LCD display with LED backlight.

Light Sensor

Integrated automatic light sensor.

FUNCTIONS

Racetrack

Featuring information from 150 of the world’s most popular racetracks.

Race Chronograph

Measuring lap time and average speed of two cars simultaneously with accuracy down to 1/100 of a second.

Countdown to Race

Time remaining to next race displayed with days, hours, minutes and seconds.

FIA Formula 1 Countdown

Warning system of time remaining until Formation Lap, according to the Formula 1 regulations of Fédération Internationale de l’Automobile (FIA).

Dual Time

Showing local time andpreferred world time as well as day, date and week Battery lifetime and software version is also visible within this function.

World Timer

UTC and DST, with ability to display time and time zone of the 193 countries connected to UN.

Alarm Clock

With possibility of setting the alarm to sound once, every day or weekdays (Reveille).

Timer

24 hour timer.

G-Force

Three axis accelerometer measuring G-forces in three different directions.

Backlight

Integrated automatic light sensor.

Alarm Signal

Case-back with a resonance system for amplified sound level and with a sound profile with frequencies between of 2,5 –8 kHz.

Perpetual Calendar

Day, date, year and week indicator.

Power Save Mode

With battery reserve indicator.

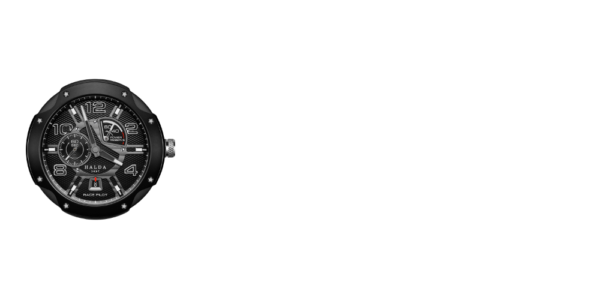

Mechanical module

CASE

Material

The case is made of Titanium with black DLC (Diamond-Like Carbon) treatment. The sapphire crystal caseback has a magnifying effect.

Dimension

Diameter 45 mm, Thickness 17,50 mm.

Crystal

Domed Sapphire Crystal, anti reflex treated on inside.

Case Back

Curved sapphire crystal, anti-reflex treated.
Caseback – curved sapphire crystal with a magnifying effect.

Water Resistance

10 atm (equivalent to a water pressure at a depth of 100 m)

TECHNOLOGY

General

Automatic with a central minute and hour hand. Small second sub dial and a Power Reserve indicator. Frequency 28.800 bph (4 hz). Manufactured by one of the most highly regarded Swiss mechanical movement producers – Zenith SA.

Caliber

H685-Z with 38 jewels and frequency of 28 800 bph (4Hz).

Dial & Hands

Dial made of 29 individually manufactured pieces decorated with Côtes de Geneve and Clous de Paris. It has indexes and Arabic numbers applied with Superluminova. The Race Pilot is available in three different dials; Silver, Gun Metal and Black Luminova. The hands are skeletonized and have tips in Superluminova.

Decoration

Rhodanized and decorated with Côtes de Genève, Clous de Paris, Colimaçonnage and Perlage.

Rotor

Specially designed in heavy metal etched with Halda Race Pilot and decorated with Côtes de Genève and Clous de Paris.

Power Reserve

50 hours

Trackmaster module

CASE

Teca Black NASA certified material (light, resistant and temperature isolating capability).Operating Temperature Range: - 10º C to 70º C.

Dimensions

Diameter 72 mm, Thickness 25 mm, weight 87 g.

Crystal

Domed mineral crystal.

Transmission Distance

Max 4 meters.

TECHNOLOGY

Electronics

Made in-house by Halda Watch Co, caliber HTM17-1 with a light communication system and built in GPS antenna.

Software

HTM-1 TRACKMASTER.

FUNCTIONS

General

Military grade GPS transponder, 10 Hz logging, 6 axis accelerometer, Lateral G force measurement, 150 pre-stored racetracks, Predictive Lap Timing, integrated light sensor, wireless communication.

Battery / Power Reserve

15 hours, Battery Low indicator, Re-chargeable in 4 hours.

Input

5 V DC, 1 A (USB A).
